Refractory Materials Soda Lime 50T Glass Melting Furnace

Product Details

Place of Origin: China

Brand Name: JEFFER

Certification: ISO9001, ISO14001, ISO45001

Model Number: Customized

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: Wooden case, tray, steel frame, etc

Delivery Time: 90 days after received the down payemnt

Payment Terms: T/T, L/C

Supply Ability: 1 set per 3 months

Get Best Price
Contact Now
Specifications
High Light:

50T glass melting furnace

,

50T Soda lime glass tank furnace

,

50T Soda lime glass melting furnace

Capacity:
Customized
Material:
Refractory Materials
Kind Of Glass:
Soda-lime
Color:
Customized
Condition:
New
Kind Of Fuel:
Customized
Consumption:
Energy Saving
Waranty:
One Year
Application:
Glass Industry
After-salses Service:
Engineering Overeas Service Available
Capacity:
Customized
Material:
Refractory Materials
Kind Of Glass:
Soda-lime
Color:
Customized
Condition:
New
Kind Of Fuel:
Customized
Consumption:
Energy Saving
Waranty:
One Year
Application:
Glass Industry
After-salses Service:
Engineering Overeas Service Available
Description
Refractory Materials Soda Lime 50T Glass Melting Furnace

Customized Furnace, Glass Melting Processing, Engineering Services





1. Brief Description



Glass is a special amorphous inorganic nonmetallic material. The main component is silicate, a non-crystalline solid with an irregular structure



Glass melting is the most important process in glass production, it is a forming process where the batched materials form a qualified liquid evenly with no bubbles under high temperature heating.



Technical process of glass



Glass liquid forming



In this stage, the sinter will be melting and the silicate and SiO2 in sinter will change to flint glass liquid with a plenty of bubbles. However, its chemical components and character are not even.



Clearing



The glass liquid is continuously heated, and its viscosity is reduced with plenty of gaseous sundries released, which should eliminate the visible bubbles with the pool of liquid.



Homogenization



The glass liquid is kept at high temperature for a long time, the ripple eliminates by diffused function and homogenizes as a whole. The temperature of homogenization can be lower than the clearing stage.




Glass melting is a very complex process, it includes physical, chemical and physicochemical phenomena and reaction. These phenomena and reaction lead the mechanical mixed raw materials to complex melting glass liquid.



Factors that influence the melting effects:

  • Characteristic of raw materials
  • Chemical component of batched materials
  • Material feeding method
  • Melting temperature

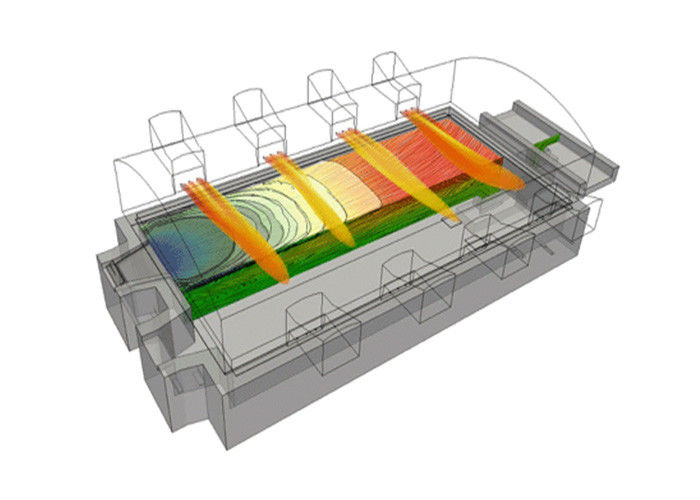

Refractory Materials Soda Lime 50T Glass Melting Furnace 0



2. Type of Furnace


Capacity



Small scale furnace Daily furnace capacity: below 50tons
Medium scale furnace Daily furnace capacity: 50tons~150tons
Large scale furnace Daily furnace capacity: 150tons plus





Product



Flat glass furnace For float glass, sheet glass and figured glass production line.
Domestic glass furnace For container glass, tableware glass, tube glass, etc production line.





Heating source



Fired furnace The combustion fuel can be natural gas, heavy oil, diesel oil…… for this kind of furnace.
Electric furnace Electricity is the fuel for this kind of furnace.
Fired-electric furnace This kind of furnace is mainly using combustion fuel, electricity is used as a supplementary heating source.





 3. Furnace structure



According to current fired furnace structure, it is mainly divided into four parts:

  • Glass melting section
  • Heat source supply section
  • Waste heat recovery section
  • Gas supply and waste gas exhaust





 4. Furnace melting technology system





Furnace melting technology includes temperature, pressure, bubbling, glass liquid level, fuel, reversing system etc.





Temperature



The temperature means the temperature the of melting tank, not the whole furnace. The distribution of temperature is from the melting tank through the length of the furnace.





Pressure



Furnace pressure is the static pressure of the gas system, which is determinate by pressure distribution curve.





Bubbling



Stable shape and position of bubble are an important sign to estimate the melting performance, which will also affect the production capacity of furnace and quality of glass liquid.



Factors that affects bubbling:

  • Shape of materials
  • Fuel quality
  • Quantity of cullet feeding
  • Moisture of batched materials
  • Quality of raw materials
  • Port structure
