Heavy Oil Soda Lime 50TPD Glass Melting Furnace

Product Details

Place of Origin: China

Brand Name: JEFFER

Certification: ISO9001, ISO14001, ISO45001

Model Number: Customized

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: Wooden case, tray, steel frame, etc

Delivery Time: 90 days after received the down payemnt

Payment Terms: T/T, L/C

Supply Ability: 1 set per 3 months

Get Best Price
Contact Now
Specifications
High Light:

50TPD Glass Melting Furnace

,

Heavy Oil glass tempering furnace

,

ISO45001 Soda lime Glass Melting Furnace

Capacity:
Customized
Material:
Componsite Materials
Kind Of Glass:
Soda-lime
Color:
Customized
Condition:
New
Kind Of Fuel:
Heavy Oil
Consumption:
Energy Saving
Waranty:
One Year
Application:
Glass Industry
After-salses Service:
Engineering Overeas Service Available
Capacity:
Customized
Material:
Componsite Materials
Kind Of Glass:
Soda-lime
Color:
Customized
Condition:
New
Kind Of Fuel:
Heavy Oil
Consumption:
Energy Saving
Waranty:
One Year
Application:
Glass Industry
After-salses Service:
Engineering Overeas Service Available
Description
Heavy Oil Soda Lime 50TPD Glass Melting Furnace

Heavy Oil Combustion, Supervision Available, Glass Melting Furnace





1. Brief Description





The melting process is divided into five stages as following, each section has its inner connection, affecting each other. If one stage has imperfect performance, it will influence the next stage, and ultimately affect the quality of glass.



Glass melting is the most important process in glass production, it is a forming process where the batched materials form a qualified liquid evenly with no bubbles under high temperature heating.



Technical process of glass



Glass liquid forming



In this stage, the sinter will be melting and the silicate and SiO2 in sinter will change to flint glass liquid with a plenty of bubbles. However, its chemical components and character are not even.



Clearing



The glass liquid is continuously heated, and its viscosity is reduced with plenty of gaseous sundries released, which should eliminate the visible bubbles with the pool of liquid.



Homogenization



The glass liquid is kept at high temperature for a long time, the ripple eliminates by diffused function and homogenizes as a whole. The temperature of homogenization can be lower than the clearing stage.




Glass melting is a very complex process, it includes physical, chemical and physicochemical phenomena and reaction. These phenomena and reaction lead the mechanical mixed raw materials to complex melting glass liquid.

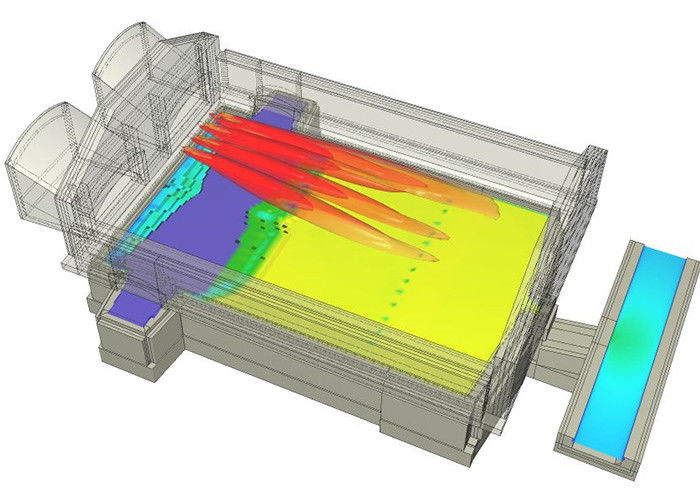

Heavy Oil Soda Lime 50TPD Glass Melting Furnace 0



2. Type of Furnace


Capacity



Small scale furnace Daily furnace capacity: below 50tons
Medium scale furnace Daily furnace capacity: 50tons~150tons
Large scale furnace Daily furnace capacity: 150tons plus





Product



Flat glass furnace For float glass, sheet glass and figured glass production line.
Domestic glass furnace For container glass, tableware glass, tube glass, etc production line.







 3. Furnace structure



According to current fired furnace structure, it is mainly divided into four parts:

  • Glass melting section
  • Heat source supply section
  • Waste heat recovery section
  • Gas supply and waste gas exhaust

Melting section



It is the part which melts batched materials and Clearing and homogenizes glass liquid. In the upper space of the melting section is referred to as the flame space, the lower part is melting tank.



The flame comes from the burner through the port, which feds in preheated air to increase the flame effiency.



Dog house



Batched materials feed into the furnace through dog house, the heat is transferred via flame space to the glass liquid.









 4. Furnace melting technology system





Furnace melting technology includes temperature, pressure, bubbling, glass liquid level, fuel, reversing system etc.





Temperature



The temperature means the temperature the of melting tank, not the whole furnace. The distribution of temperature is from the melting tank through the length of the furnace.





Pressure



Furnace pressure is the static pressure of the gas system, which is determinate by pressure distribution curve.





Bubbling



Stable shape and position of bubble are an important sign to estimate the melting performance, which will also affect the production capacity of furnace and quality of glass liquid.
