Mild Steel Soda Lime 30 TPD Glass Melting Furnace

Product Details

Place of Origin: China

Brand Name: JEFFER

Certification: ISO9001, ISO14001, ISO45001

Model Number: Customized

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: Wooden case, tray, steel frame, etc

Delivery Time: 90 days after received the down payemnt

Payment Terms: T/T, L/C

Supply Ability: 1 set per 3 months

Get Best Price
Contact Now
Specifications
High Light:

30 TPD Glass Melting Furnace

,

30 TPD glass furnace refractories

,

ISO45001 Soda lime Glass Melting Furnace

Capacity:
Customized
Material:
Mild Steel
Kind Of Glass:
Soda-lime
Product:
Tableware
Condition:
New
Kind Of Fuel:
Natural Gas
Consumption:
110-125m3/t
Waranty:
One Year
Application:
Glass Industrial
Service:
Engineering Overeas Service
Capacity:
Customized
Material:
Mild Steel
Kind Of Glass:
Soda-lime
Product:
Tableware
Condition:
New
Kind Of Fuel:
Natural Gas
Consumption:
110-125m3/t
Waranty:
One Year
Application:
Glass Industrial
Service:
Engineering Overeas Service
Description
Mild Steel Soda Lime 30 TPD Glass Melting Furnace

30 TPD Glass Industry Melting Furance, Construction, Engineering





1. Brief Description



Glass is a special amorphous inorganic nonmetallic material. The main component is silicate, a non-crystalline solid with an irregular structure.



Glass furnace is a melting device, which is the most necessary and important equipment for the glass industry.



Glass melting is the most important process in glass production, it is a forming process where the batched materials form a qualified liquid evenly with no bubbles under high temperature heating.



Physicochemical changes in each glass melting stage:

  • Silicate forming
  • Glass liquid forming
  • Clearing
  • Homogenization


The defect of glass production is mainly due to the melting process, the melting quality has a close relationship with the quality of yield production, production cost, fuel combustion, furnace campaign, etc. It is important to ensure the physicochemical reaction of batched materials perform well during the whole melting process, and make sure the whole process is smoothly operated and for manufacturing high quality glass products.

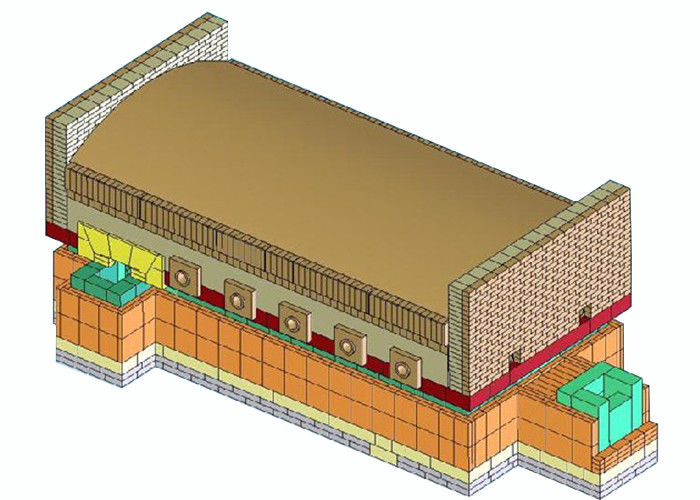

Mild Steel Soda Lime 30 TPD Glass Melting Furnace 0



2. Type of Furnace


Capacity



Small scale furnace Daily furnace capacity: below 50tons
Medium scale furnace Daily furnace capacity: 50tons~150tons
Large scale furnace Daily furnace capacity: 150tons plus





Heating source
  • Fired furnace
  • The combustion fuel can be natural gas, heavy oil, diesel oil…… for this kind of furnace.
  • Electric furnace
  • Electricity is the fuel for this kind of furnace.
  • Fired-electric furnace
  • This kind of furnace is mainly using combustion fuel, electricity is used as a supplementary heating source.



 3. Furnace structure



According to current fired furnace structure, it is mainly divided into four parts:

  • Glass melting section
  • Heat source supply section
  • Waste heat recovery section
  • Gas supply and waste gas exhaust

Melting section:



It is the part which melts batched materials and Clearing and homogenizes glass liquid. In the upper space of the melting section is referred to as the flame space, the lower part is melting tank. The flame comes from the burner through the port, which feds in preheated air

to increase the flame effiency.



Dog house:



Batched materials feed into the furnace through dog house, the heat is transferred via flame space to the glass liquid.





 4. Furnace melting technology system



Reasonable melting technology is a system which could ensure a normal daily production. It will have an important function for high production, high quality, low consumption and furnace campaign.



Furnace melting technology includes temperature, pressure, bubbling, glass liquid level, fuel, reversing system etc.





5. Packing and transportation of refractory materials



Mild Steel Soda Lime 30 TPD Glass Melting Furnace 1

Mild Steel Soda Lime 30 TPD Glass Melting Furnace 2
